CNC Vertical Machining Center (2 Linear Guide Way)

The Z axis of the CNC vertical machining center (XY linear guideways) adopts a box guideway and X/Y axis adopts linear guideway. This allows the machined materials to move all around rapidly. And the spindle can bear higher force than CNC vertical machining center with 3 axis linear guideways. Moreover, the machined products feature better precision than other CNC machining equipment.

CNC vertical machining center produced by Tying CNC

Samples machined by CNC vertical machining center

  • Large workpiece by CNC vertical machining center

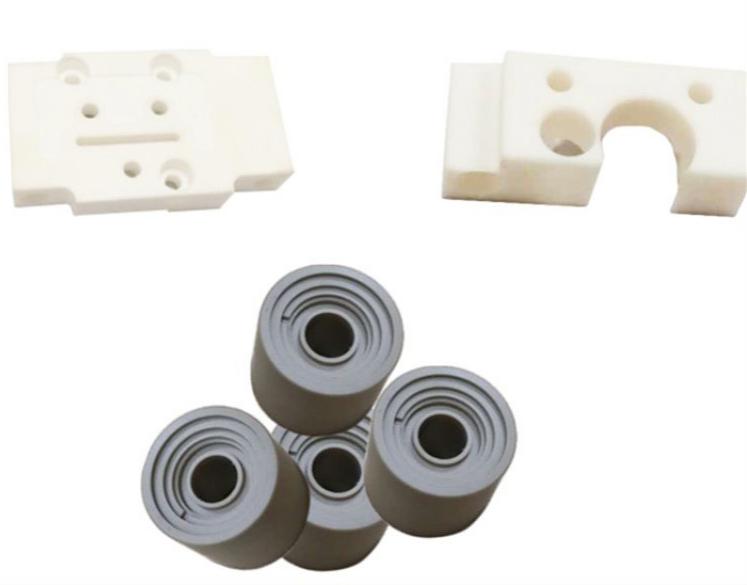

  • Engineering plastic workpiece by CNC vertical machining center

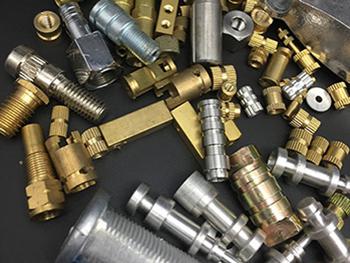

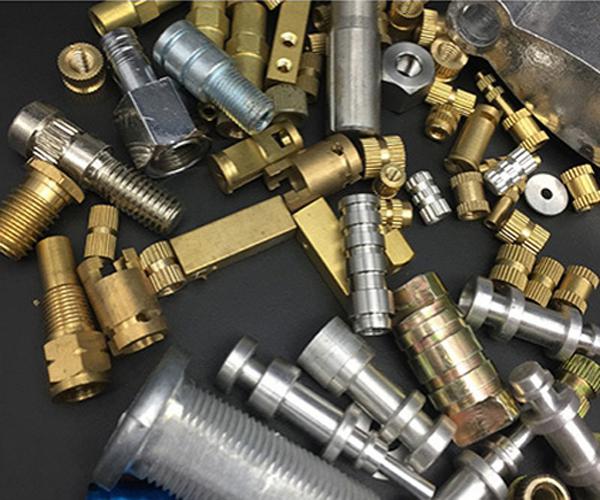

  • Hardware accessories by CNC vertical machining center
Features of CNC vertical machining center (XY linear guideways)
  • Its base is designed with A-type structure, improving the vibration absorption effect.
  • The machine body adopts meehanite cast iron and undergoes tempering treatment to relive internal stress. This also ensures the rigidity, precision and durability.
  • Both ends of linear guideway adopts double nut for fixing. The supporting seats at both ends uses 5 ball bearing totally for locking and are pre-stretched to ensure constant precision in case of thermal expansion.
  • The lubricating system guarantees uniform oil at lubricating points. This enables the CNC machining center to maintain good lubricating properties and prolong service life.

As for these parts, the control system can be changed depending on client needs. Our tool storage can be assembled with more tools. And please click the parts for detailed information.
