CNC Gantry Machining Center, Series LM-3017

Double Column Machining Center

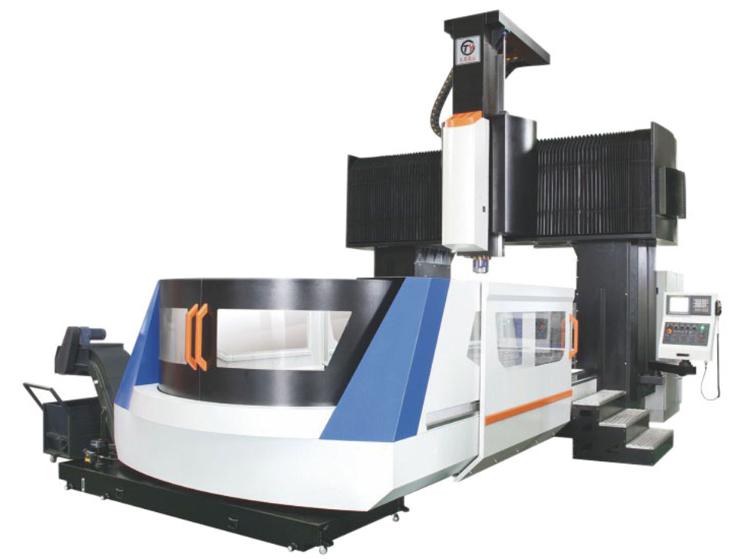

The LM-3317 CNC gantry milling machine has an X-axis travel of 3300mm, a Y-axis travel of 1850mm and a Z-axis travel of 800mm. Its spindle speed is 6000rpm and features a positioning accuracy of 0.035/1000rpm. This ensures machined products feature a high precision and high machining speed. This gantry milling machine is often used for machining large, complex workpieces such as airplane beams and frames, and other large machinery parts.

Parameters
Model LM-3317
Travels
X-axis travel (mm) 3300
Y-axis travel (mm) 1850
Z-axis travel (mm) 800
Distance from spindle nose to table center (mm) 240-1040
Table (gantry) width (mm) 1700
Worktable
Worktable area (mm) 3300×1500
Maximum weight on table (kg) 8000
T-slot (width – number of slot x spacing) (mm) 8-22×170
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT60φ190
Spindle drive mode direct drive
Spindle power (KW) 22
Feed
Cutting feed (mm/min) 8000
Rapid feed (m/min) 15/15/12
Linear guide rail width / number of tracks (mm) 2-45X2-45Y:Z box guideway
Others
Three-axis motor power (KW) 7.0/4.5/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 45
Air pressure (bar) 6.5
Machine weight (t) 25
Machine dimension (mm) 7800×4450× 4950
Components of gantry milling machine
  • Control system and motor
  • Box guideway
  • Mechanical spindle, gear drive
  • Chain-type tool magazine
