The 5-axis CNC machine is a piece of CNC machining equipment with 5 machining heads. During operation, each head is simultaneously installed using the same tool for one process, or different tools for different processes in a sequence. This CNC machine is used to machine batch products, such as hardware, watchcases, decorations, stone setting and more. Tying CNC offers 3-head 3-axis, 3 head 4-axis, 4-head 3-axis and 4-head 4-axis CNC machines.
5-axis CNC machines manufactured by Tying CNC
Multi-Spindle Machining Center, Series MS-540X-axis travel: 500mm
Y-axis travel:4 00mm
Z-axis travel: 300mm
Positioning accuracy: ±0.005/300mm
Maximum weight on table: 200kg
Spindle speed (standard): 24000-48000rpm
Multi-Spindle Machining Center, Series MS-640X-axis travel:600mm
Y-axis travel :400mm
Z-axis travel:300mm
Positioning accuracy:±0.005/300mm
Maximum weight on table:200kg
Spindle speed (standard): 15000-30000rpm
Samples machined by the 5-axis CNC machine

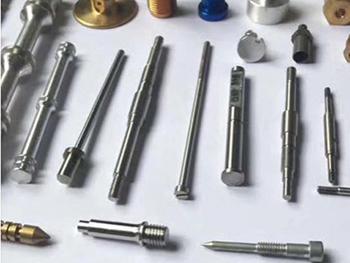

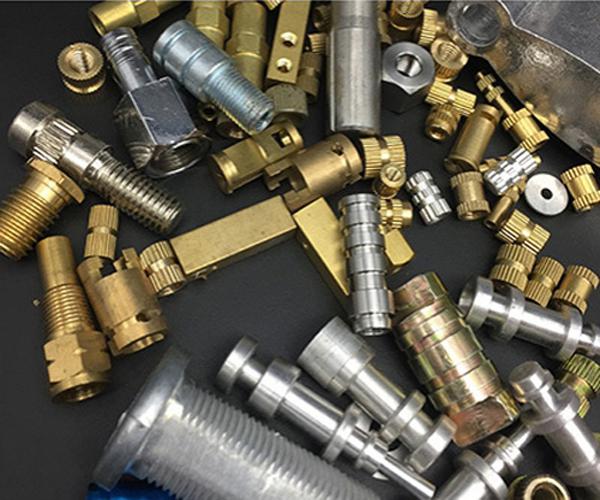

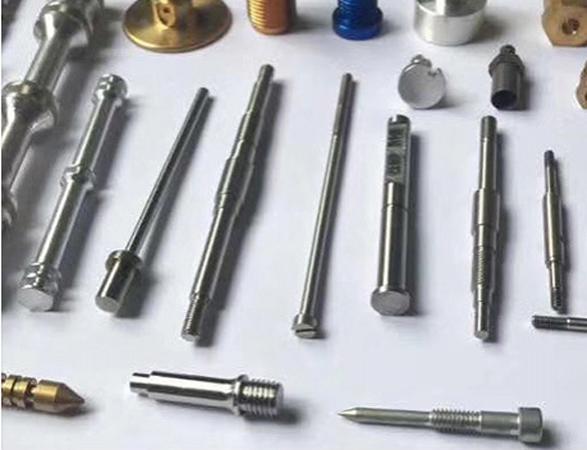

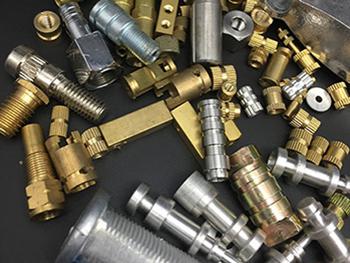

Hardware parts by 5-axis CNC machine
Hardware parts by 5-axis CNC machine

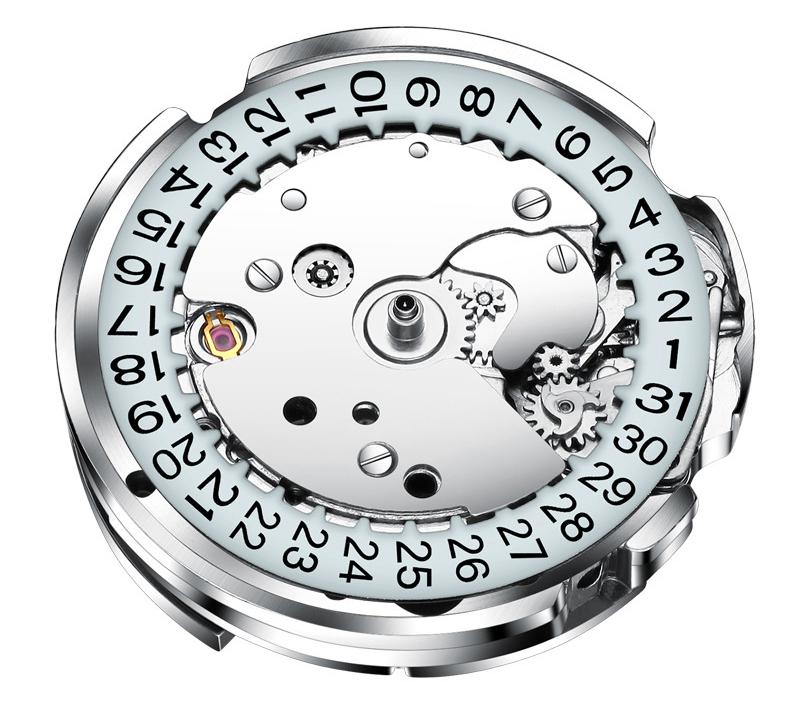

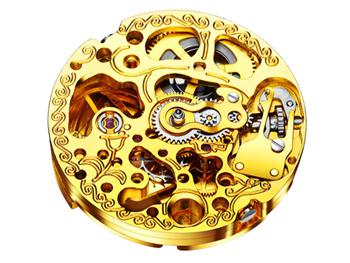

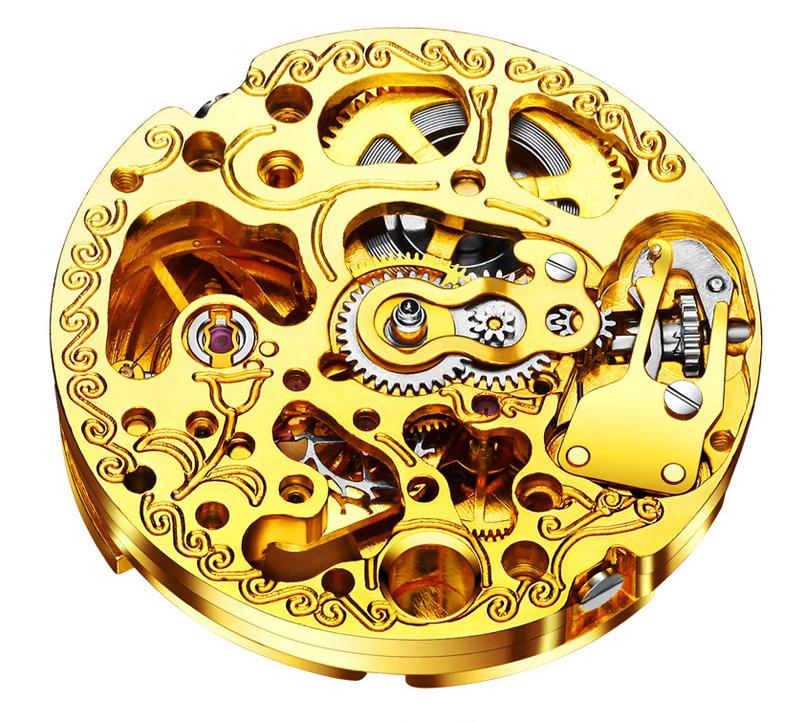

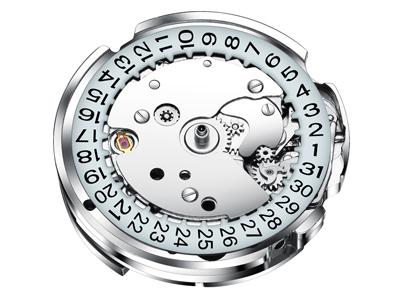

Timekeeper workpiece by 5-axis CNC machine
Timekeeper workpiece by 5-axis CNC machine
5-axis CNC Machine Features
When processing small and simple products, the 5-axis CNC machine has an absolute advantage in its cutting capacity, high speed, high efficiency and high precision.
Different clamp types are designed according to customer requirements in order to allow the CNC machine to maximize on its features.
There is no need to change tools, which saves changing time and improves production efficiency.
The control system can be changed according to client requirements. Our tool storage holds more tools. Click on each part for more detailed information.
