- CNC Gantry Machining Center, Series LM-2013
CNC Gantry Machining Center, Series LM-2013
Double Column Machining Center

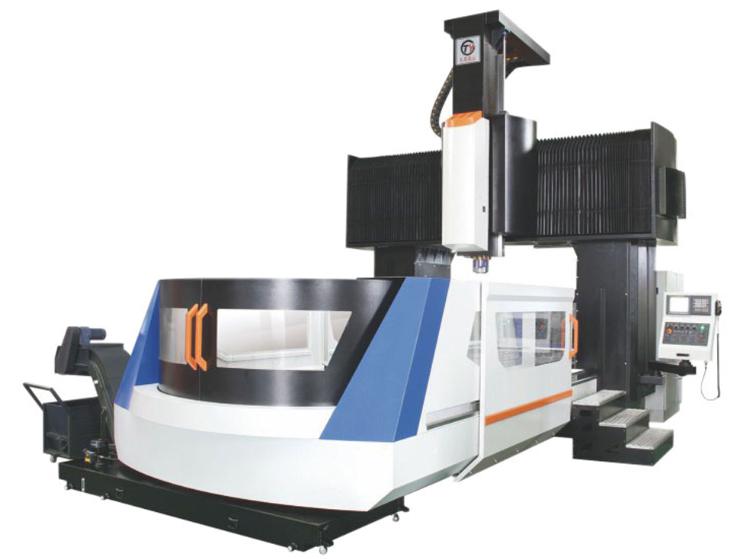

LM-3013 vertical bridge gantry mill is used to machine large and complex components, such as airplane beams and frames, and other large machinery parts. This gantry mill is a heavy duty machine tool and features a belt driven spindle with a speed of 6,000rpm and positioning accuracy of 0.035/1000mm.
Parameters| Model | LM-3013 |
| Travels | |
| X-axis travel (mm) | 3200 |
| Y-axis travel (mm) | 1400 |
| Z-axis travel (mm) | 800 |
| Distance from spindle nose to table center (mm) | 120-920 |
| Table (gantry) width (mm) | 1400 |
| Worktable | |
| Worktable area (mm) | 3000×1000 |
| Maximum weight on table (kg) | 5000 |
| T-slot (width – number of slot x spacing) (mm) | 7-22×150 |
| Spindle | |
| Standard spindle speed (rpm) | 6000 |
| Spindle taper | BT50φ190 |
| Spindle drive mode | Belt drive |
| Spindle power (KW) | 22 |
| Feed | |
| Cutting feed (mm/min) | 8000 |
| Rapid feed (m/min) | 10/10/10 |
| Linear guide rail width / number of tracks (mm) | 2-45X2-45Y:Z box guideway |
| Others | |
| Three-axis motor power (KW) | 7.0/4.5/7.0 |
| Positioning accuracy (mm) | 0.035/1000 |
| Repeatability (mm) | 0.025 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 0.48 |
| Power requirement (KVA) | 40 |
| Air pressure (bar) | 6.5 |
| Machine weight (t) | 23 |
| Machine dimension (mm) | 7705×3286×4160 |
