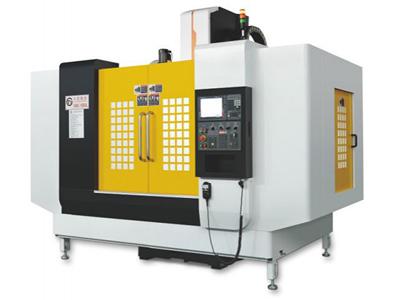

CNC Vertical Machining Center(2 Linear Guide Way), Series L-850
CNC Vertical Machining Center(2 Linear Guide Way), Series L-850

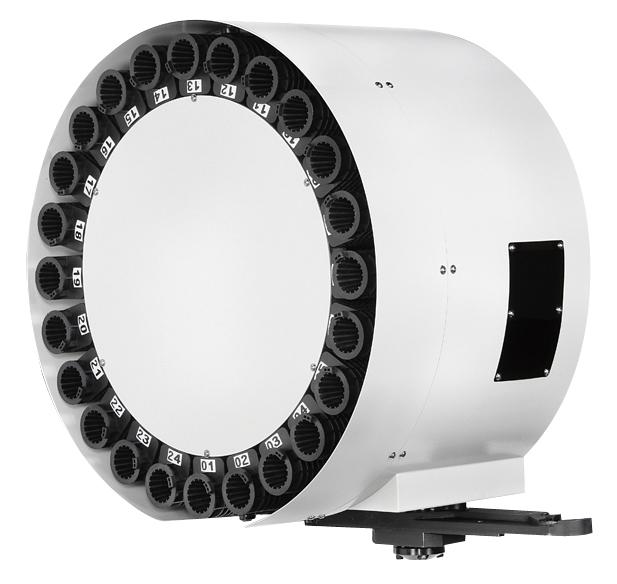

The CNC machining center comes with linear guide ways on X/Y axis and box ways on Z axis. With 24 tools magazine, it’s suitable for the complex machining. and spindle can bear higher force to make the machined products of higher precision.
Parameters of L-850 CNC vertical 3 axis machining center
Model
L-850
Stroke
X-axis travel (mm)
800
Y-axis travel (mm)
500
Z-axis travel (mm)
500
Distance from spindle nose to table center (mm)
110-610
Distance between spindle center to column (mm)
560
Worktable
Worktable area (mm)
1000×500
Maximum weight on table (kg)
600
T-slot quantity
5
T-slot size (mm)
18
Spindle
Standard spindle speed (r.p.m)
8000
Spindle speed (non-standard) (rpm)
12000-15000
Spindle horsepower (KW)
10 (7.5)
Spindle taper
BT-40
Feed
Triaxial rapid feed (mm/min)
30000/30000/18000
Triaxial cutting feed (mm/min)
1-8000
Others
Three-axis motor power (KW)
2/2/3
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
35
Air pressure (bar)
6-7
Machine weight (kg)
6000
Machine dimension (mm)
2650×2700×2500
Components display of CNC Vertical Machining Center (2 Linear Guide Way)
Control system and motor

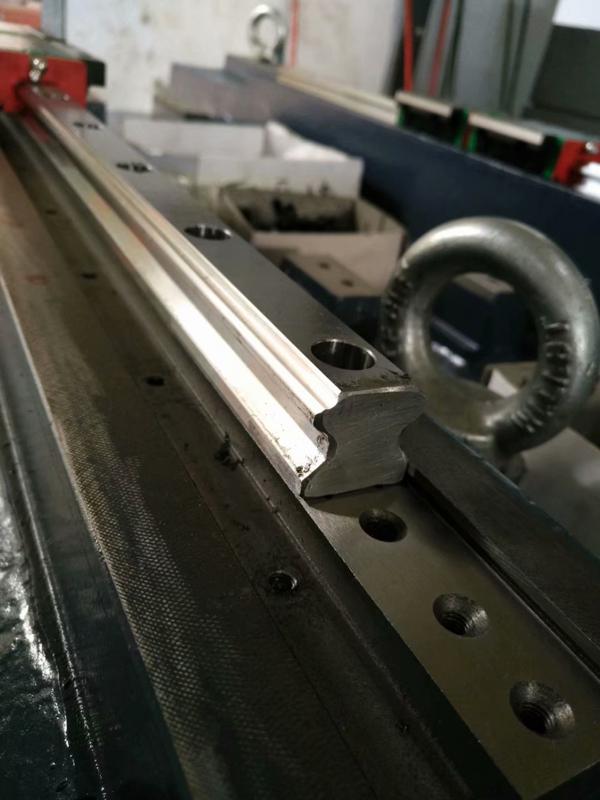

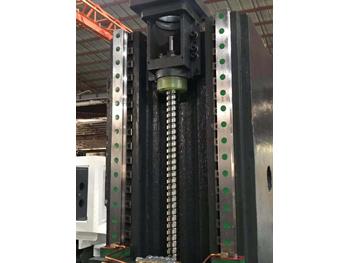

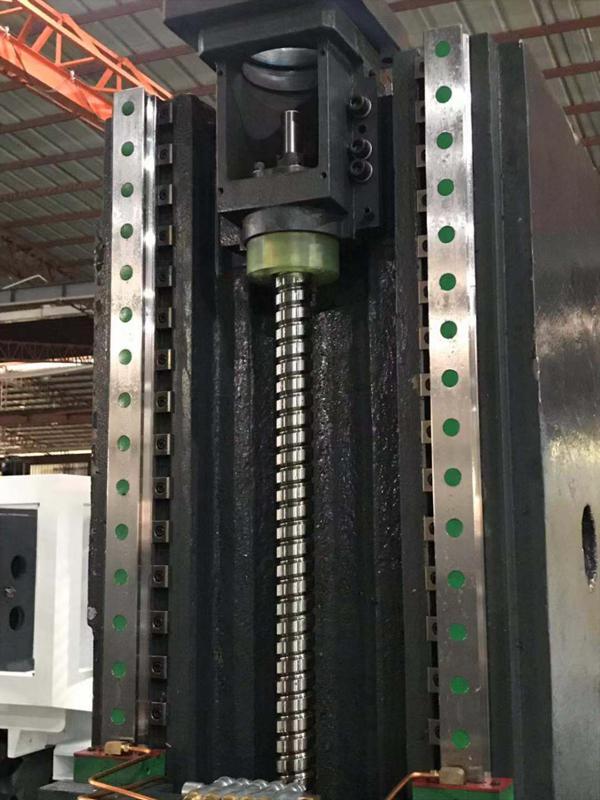

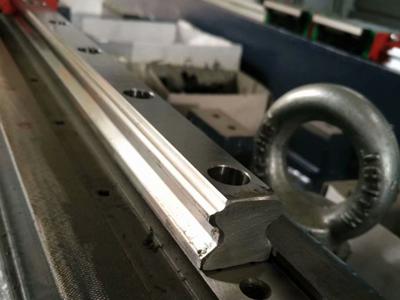

X axis and Y axis adopt linear guideway, and Z axis uses box guideway
X axis and Y axis adopt linear guideway, and Z axis uses box guideway
Add.: No.5, Jinfu 2nd Road, South China Industrial, LiaoBu Town, Dongguan City, Guangdong Province Contact: Peter
Tel:+86-769-83030195 Fax:+86-769-85789126 SKYPE: tyingcnc Mailbox:ty13829266306@gmail.com
Control system and motor
Mechanical spindle, direct drive
