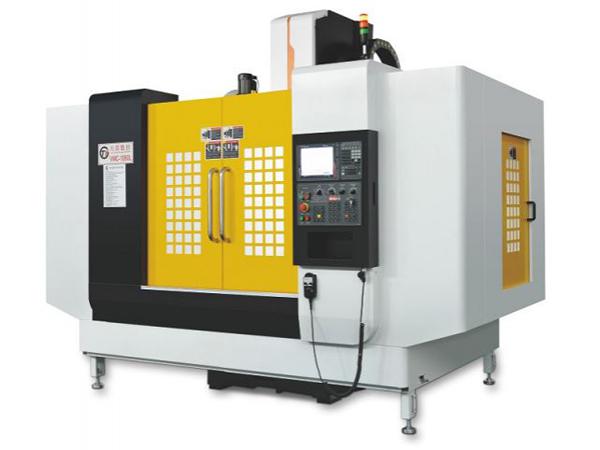

CNC Vertical Machining Center(2 Linear Guide Way), Series L-1060
CNC Vertical Machining Center(2 Linear Guide Way), Series L-1060
The L-1060 CNC machining center adopts a box guideway for its Z-axis on the basis of linear guideways in X and Y axes. This enables the machined materials to move all around rapidly, thus improving working efficiency. This machining center’s travels in X, Y and Z axes are 100mm, 600mm and 600mm, respectively. Its workbench can load as many as 800kg materials at one time.
Parameters of L-1060 CNC machining center
Model
L-1060
Stroke
X-axis travel (mm)
1000
Y-axis travel (mm)
600
Z-axis travel (mm)
600
Distance from spindle nose to table center (mm)
150-750
Distance between spindle center to column (mm)
600
Worktable
Worktable area (mm)
1200×600
Maximum weight on table (kg)
800
T-slot quantity
5
T-slot size (mm)
18
Spindle
Standard spindle speed (r.p.m)
8000
Spindle speed (non-standard) (rpm)
12000-15000
Spindle horsepower (KW)
15 (11)
Spindle taper
BT-40
Feed
Triaxial rapid feed (mm/min)
30000/30000/18000
Triaxial cutting feed (mm/min)
1-8000
Others
Three-axis motor power (KW)
3/3/3
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
35
Air pressure (bar)
6-7
Machine weight (kg)
8000
Machine dimension (mm)
3310×2650×2900
Components display of CNC Vertical Machining Center (2 Linear Guide Way)
Control system and motor
X axis and Y axis adopt linear guideway, and Z axis uses box guideway
X axis and Y axis adopt linear guideway, and Z axis uses box guideway
Add.: No.5, Jinfu 2nd Road, South China Industrial, LiaoBu Town, Dongguan City, Guangdong Province Contact: Peter
Tel:+86-769-83030195 Fax:+86-769-85789126
Control system and motor
Mechanical spindle, direct drive
