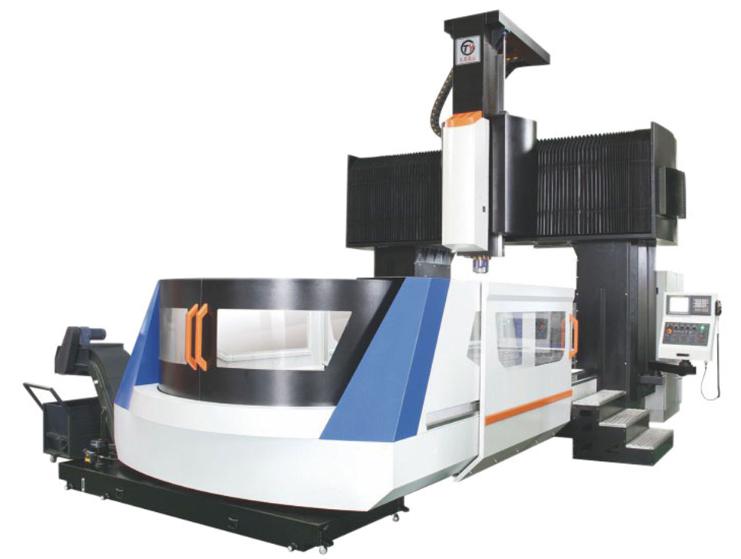

The LM-1611 gantry CNC milling machine travels on the X axis, Y axis and Z axis at 1100mm, 1600mm and 520mm respectively, with a spindle speed of 6,000rpm and a positioning accuracy of 0.035/1000mm. This ensures that this milling machine features a high machining speed and precision, making it ideal for use in heavy industries where large and complicated workpieces are produced.
ParametersModel | LM-1611 |
Travels | |
X-axis travel (mm) | 1600 |
Y-axis travel (mm) | 1100 |
Z-axis travel (mm) | 520 |
Distance from spindle nose to table center (mm) | 130-650 |
Table (gantry) width (mm) | 1100 |
Worktable | |
Worktable area (mm) | 1600×1000 |
Maximum weight on table (kg) | 2500 |
T-slot (width – number of slot x spacing) (mm) | 7-22×150 |
Spindle | |
Standard spindle speed (rpm) | 6000 |
Spindle taper | BT50φ190 |
Spindle drive mode | Belt drive |
Spindle power (KW) | 18.5 |
Feed | |
Cutting feed (mm/min) | 8000 |
Rapid feed (m/min) | 12/10/10 |
Linear guide rail width / number of tracks (mm) | 2-45X2-45Y:Z box guideway |
Others | |
Three-axis motor power (KW) | 4.5/4.5/7.0 |
Positioning accuracy (mm) | 0.035/1000 |
Repeatability (mm) | 0.025 |
Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
Coolant tank (Pump) (HP) | 0.48 |
Power requirement (KVA) | 35 |
Air pressure (bar) | 6.5 |
Machine weight (t) | 13 |
Machine dimension (mm) | 3700×2550×3200 |
