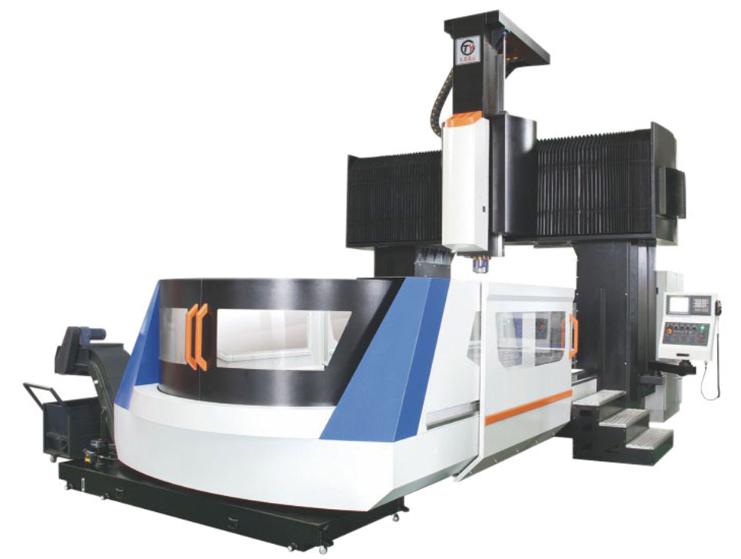

The LM-3022 gantry CNC machining center features a gantry width of 2200mm and a worktable of 3000×1800mm with a maximum loading capacity of 8000kg. This gantry CNC machining center is used to machine large parts in complicated shapes, such as airplane beams and frames, and heavy duty machinery parts.
Parameters| Model | LM-3022 |
| Travels | |
| X-axis travel (mm) | 3000 |
| Y-axis travel (mm) | 2400 |
| Z-axis travel (mm) | 1000 |
| Distance from spindle nose to table center (mm) | 200-1200 |
| Table (gantry) width (mm) | 2200 |
| Worktable | |
| Worktable area (mm) | 3000×1800 |
| Maximum weight on table (kg) | 8000 |
| T-slot (width – number of slot x spacing) (mm) | 9-22×200 |
| Spindle | |
| Standard spindle speed (rpm) | 6000 |
| Spindle taper | BT50φ190 |
| Spindle drive mode | Belt drive |
| Spindle power (KW) | 22 |
| Feed | |
| Cutting feed （mm/min） | 8000 |
| Rapid feed (m/min) | 12/12/10 |
| Linear guide rail width / number of tracks (mm) | 2-55X2-55Y:Z box guideway |
| Others | |
| Three-axis motor power (KW) | 7.0/7.0/7.0 |
| Positioning accuracy (mm) | 0.035/1000 |
| Repeatability (mm) | 0.025 |
| Control system | MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D |
| Coolant tank (Pump) (HP) | 0.48 |
| Power requirement (KVA) | 45 |
| Air pressure (bar) | 6.5 |
| Machine weight (t) | 27 |
| Machine dimension (mm) | 10260×4950×4800 |
