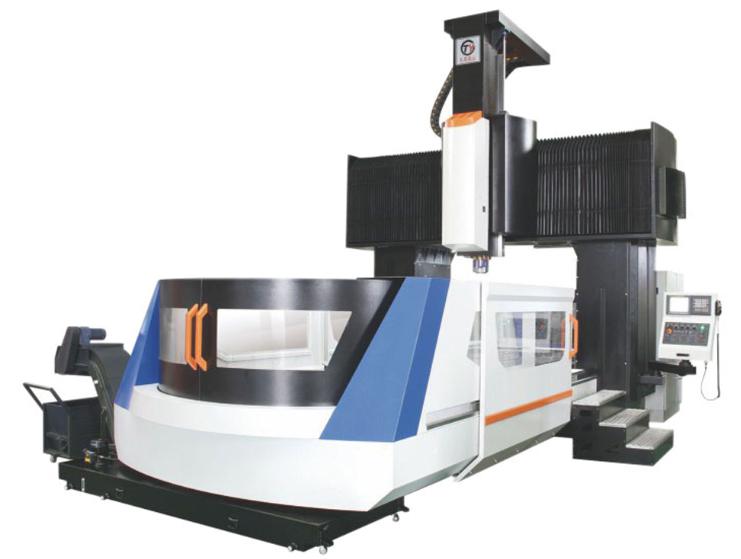

CNC Gantry Machining Center, Series LM-3025

Double Column Machining Center

The LM-3025 CNC milling machine’s spindle uses a belt drive and has a speed of 6000rpm. With a positioning accuracy of 0.035/1000mm, the machined products are known for their high precision and high speed. This milling machine is most often used to machine large components with complicated shapes, such as airplane beams and frames, and heavy duty machinery parts.

Parameters
Model LM-3025
Travels
X-axis travel (mm) 3000
Y-axis travel (mm) 2700
Z-axis travel (mm) 1000
Distance from spindle nose to table center (mm) 200-1200
Table (gantry) width (mm) 2500
Worktable
Worktable area (mm) 3000×2100
Maximum weight on table (kg) 8000
T-slot (width – number of slot x spacing) (mm) 9-28×220
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT50φ190
Spindle drive mode Belt drive
Spindle power (KW) 22
Feed
Cutting feed （mm/min） 8000
Rapid feed (m/min) 12/12/10
Linear guide rail width / number of tracks (mm) 2-55X2-55Y:Z box guideway
Others
Three-axis motor power (KW) 7.0/7.0/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 45
Air pressure (bar) 6.5
Machine weight (t) 30
Machine dimension (mm) 12860×4320×4600
Components of gantry milling machine
  • Control system and motor
  • Box guideway

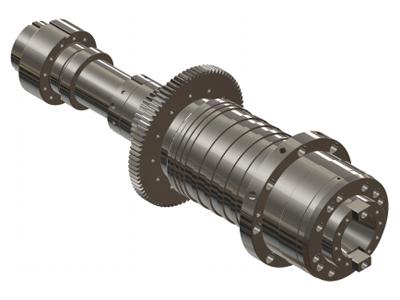

  • Mechanical spindle, gear drive

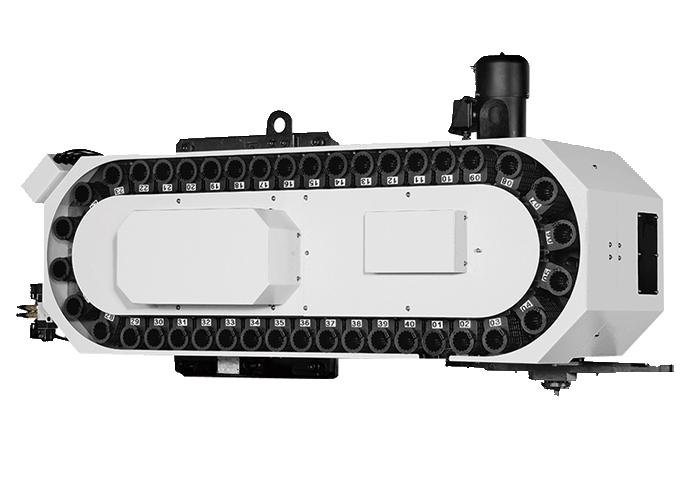

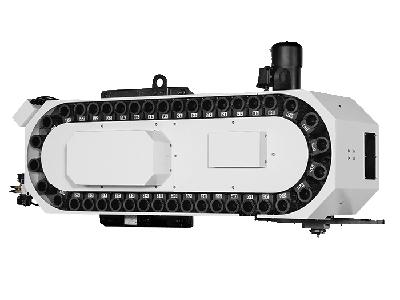

  • Chain-type tool magazine
