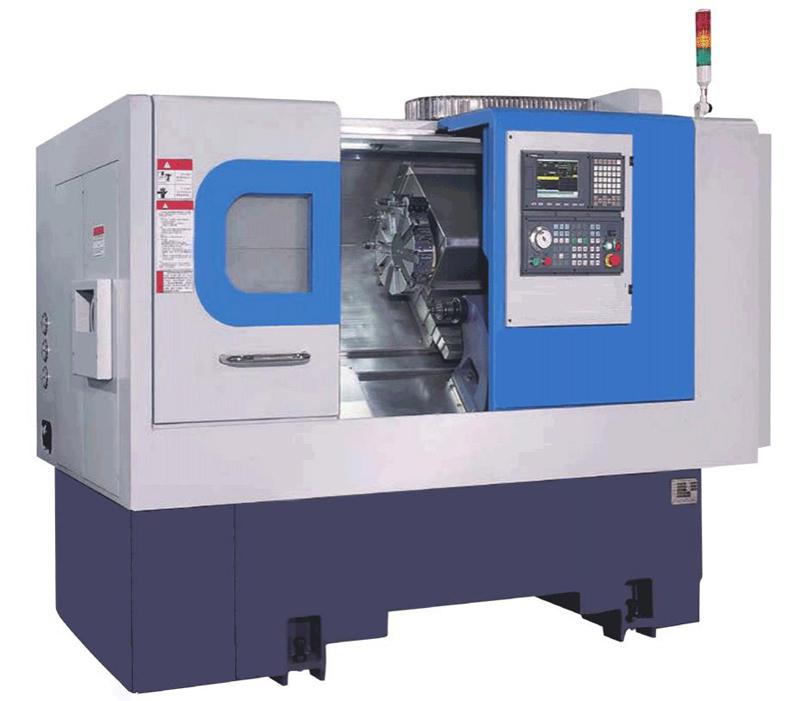

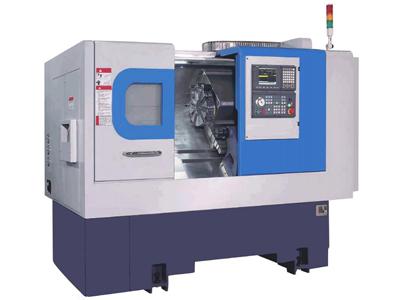

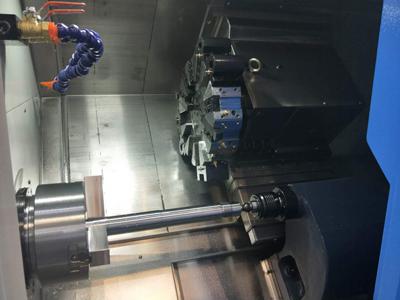

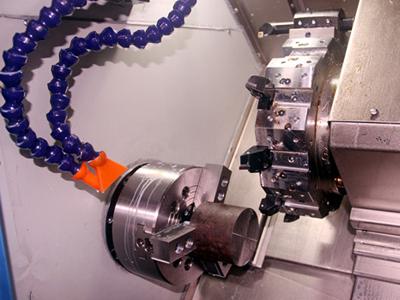

CNC Turret Lathe,Series CT

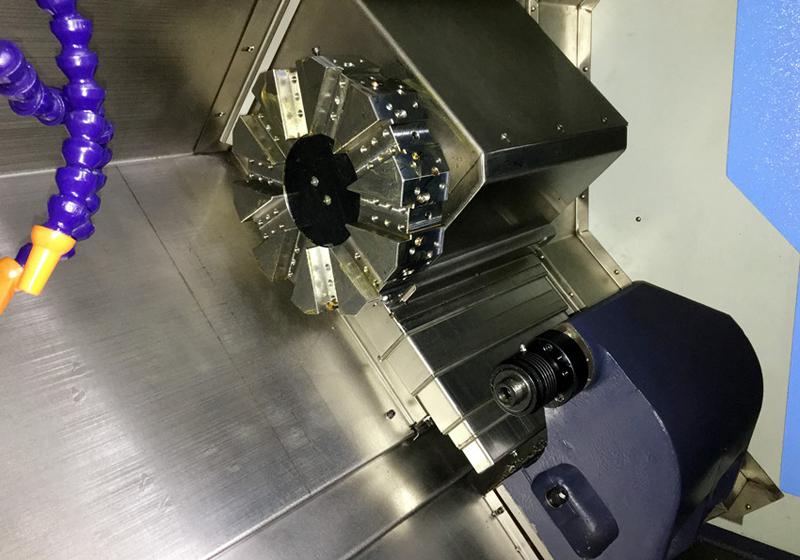

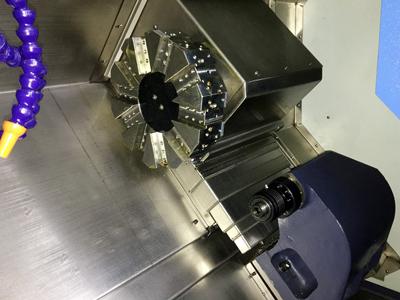

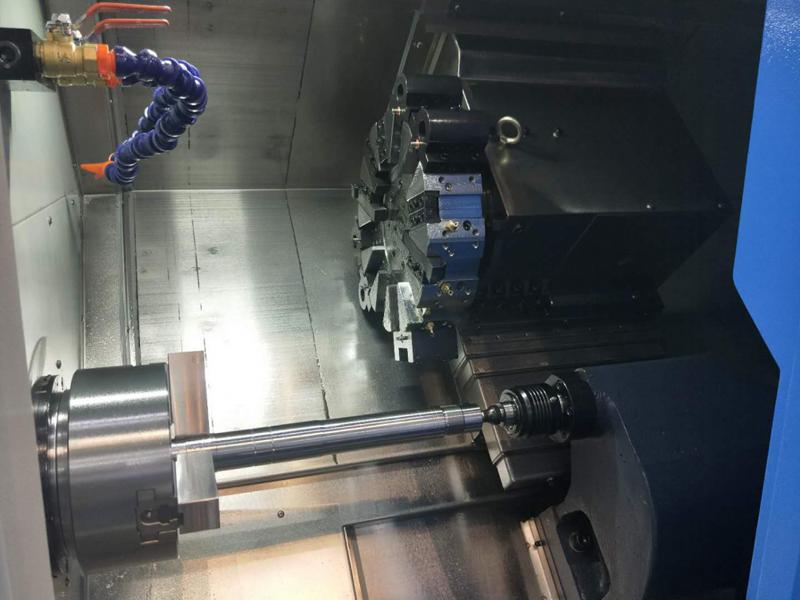

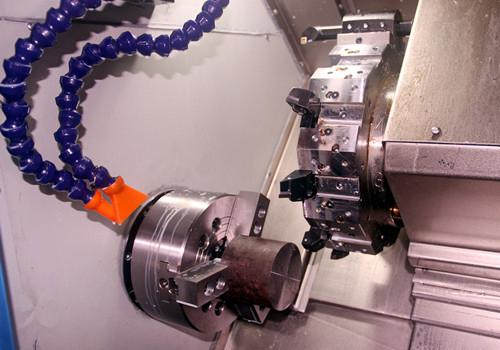

The CNC lathe machine is equipped with a German Sauter servo tool turret. Users can assemble 12 tools at a time for the machining of a variety of products. When choosing this CNC lathe machine, users can also select a Taiwanese Lio Shing hydraulic tool turret, with a capacity of 8 to 10 tools in order to carry out a variety of machining requirements. Its Z-axis travel is optional with 300nm and 500nm. Both X and Z axes feature a repeated positioning precision of ±0.0025mm, with the X/ Z axis rapid traverse reaching 20m/min. This makes it applicable for the quick turnover of high hardness materials.
Parameters| Item | CT46-300 (500) | CT52-300 (500) | CT72-300 (500) | |
| Stroke | ||||
| Maximum turning diameter | φ380mm | |||
| Maximum turning diameter (machining) | φ320mm | |||
| X-axis travel (mm) | 210mm | |||
| Z-axis travel (mm) | 350mm (540mm) | |||
| Saddle slant | 45° | |||
| Spindle | ||||
| spindle nose | A2-5 | A2-6 | A2-8 | |
| Hydraulic chuck | 6″ | 8″ | 10″ | |
| Spindle internal aperture | φ43mm | φ56mm | φ62mm | |
| Through hole drawbar | Φ45mm | Φ51mm | Φ71mm | |
| Maximum spindle speed | 4000r/min | 3500 r/min | 3500 r/min | |
| Spindle motor power | 5.5KW | 7.5KW | 11KW | |
| Axial drive | ||||
| X/ Z axis rapid traverse | 20m/min | |||
| X/Z axis servo motor power | 1.3KW | |||
| Guideway | TYPES | Roller | ||
| X-axis | MSR35X560 | |||
| Z-axis | MSR35X920 (MSR35X 1048) | |||
| Lead screw | X-axis | R32X632 | ||
| Z-axis | R32X798 (R40X 1048) | |||
| Repeated positioning | X-axis | ±0.0025mm | ||
| Z-axis | ±0.0025mm | |||
| Germany Sauter servo tool turret (Taiwan Lio shing hydraulic tool turret is optional ) | ||||
| Tools | 20X20mm(optional 160Atype, 8T: 25X25mm) | |||
| Boring tool shank diameter | Standard: φ25, optional φ32 | |||
| Tailstock | ||||
| tailstock quill taper | MT5 | |||
| tailstock centre stroke | 300mm (500mm) | |||
| Others | ||||
| Machine dimension (length *width * height) | 2150mmX1380mmX1890mm (2660mmX1460mmX1890mm) | |||
| Total power | 8.5KW | 11.5KW | 15.0KW | |
| Machine weight | 3.1T (3.5T) | 3.2T (3.6T) | 3.4T (3.8T) | |
