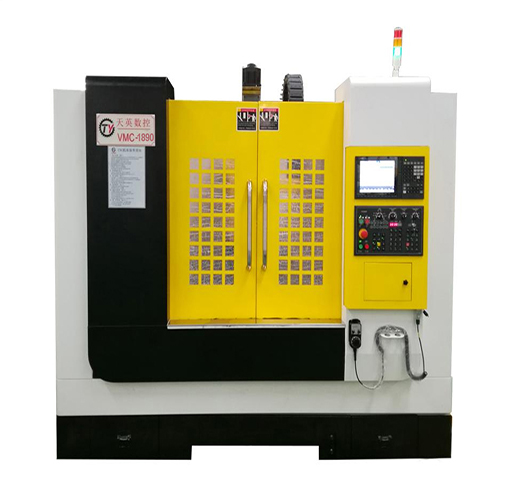

VMC-1890 Vertical Machining Center (Box Way) Vertical Machining Center, VMC Center
The Vertical machining center, VMC center, 1890 type is intended for the rough processing of various products and mold manufacturing. The main machining operation is cutting. This machining center has a spindle speed of 6000r.p.m and a positioning accuracy of ±0.005/300mm. And the using of this vertical machining center only requires a power of 30KVA.
Parameters
Model
VMC-1890
Stroke
X-axis travel (mm)
1800
Y-axis travel (mm)
900
Z-axis travel (mm)
800
Distance from spindle nose to table center (mm)
210-1010
Distance from spindle nose to table center (mm)
970
Worktable
Worktable area (mm)
1970×1000
Maximum weight on table (kg)
2000
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm)
18-7×120
Spindle
Standard spindle speed (r.p.m)
6000
Spindle horsepower (KW)
29.5 (22)
Spindle taper
BT50φ190 (belt drive)
Feed
X、Y-axis rapid feed (mm/min)
15000
Z-axis rapid feed (mm/min)
13000
Triaxial cutting feed (mm/min)
1-7000
Others
Three-axis motor power (KW)
4.5/7.0/4.5
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
30
Air pressure (bar)
6-7
Machine weight (kg)
16400
Machine dimension (mm)
5100×3400×3200

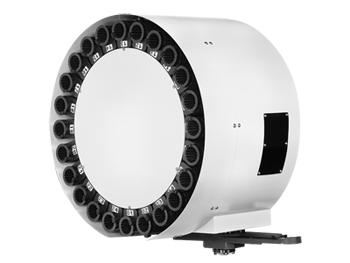

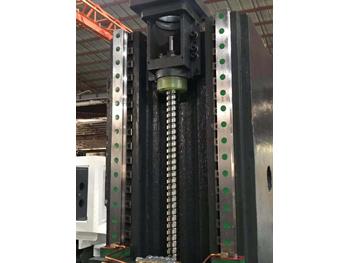

Components display of vertical machining centers (3 axis box guideways)
Add.: No.5, Jinfu 2nd Road, South China Industrial, LiaoBu Town, Dongguan City, Guangdong Province Contact: Peter
Tel:+86-769-83030195 Fax:+86-769-85789126

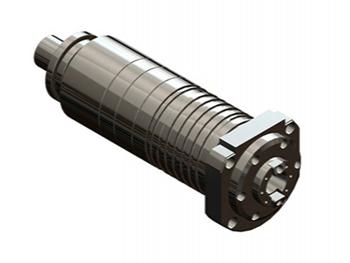

Mechanical spindle, direct drive

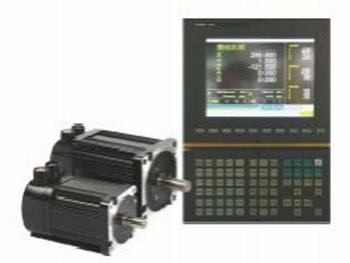

Control system and motor
