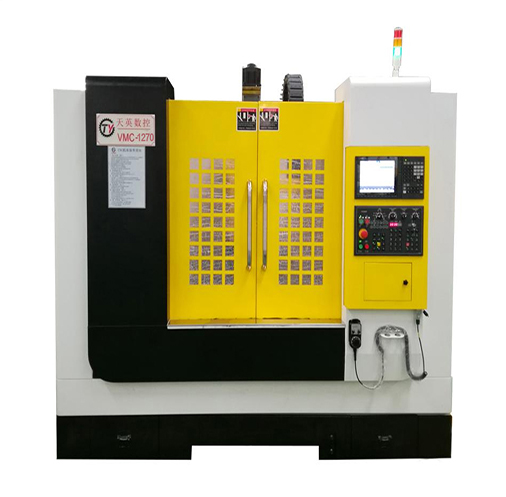

VMC-1270 Vertical Machining Center (Box Way) Rigid 3 Axis Machining Center
The Rigid 3 axis machining center has a workbench of 1360×700mm, whose maximum load is 1000kg. Its positioning accuracy reaches ±0.005/300mm. This machining center is suited to the rough processing or mold manufacturing of various products.
Parameters
Model
VMC-1270
Stroke
X-axis travel (mm)
1200
Y-axis travel (mm)
700
Z-axis travel (mm)
600
Distance from spindle nose to table center (mm)
150-750
Distance from spindle nose to table center (mm)
785
Worktable
Worktable area (mm)
1360×700
Maximum weight on table (kg)
1000
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm)
18-5×100
Spindle
Standard spindle speed (r.p.m)
8000
Spindle horsepower (KW)
15 (11)
Spindle taper
BT50φ155 (belt drive)
Feed
X、Y-axis rapid feed (mm/min)
18000
Z-axis rapid feed (mm/min)
15000
Triaxial cutting feed (mm/min)
1-10000
Others
Three-axis motor power (KW)
3.0/3.0/3.0
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
25
Air pressure (bar)
6-7
Machine weight (kg)
11500
Machine dimension (mm)
3560×3150×2850
Components display of vertical machining centers (3 axis box guideways)
