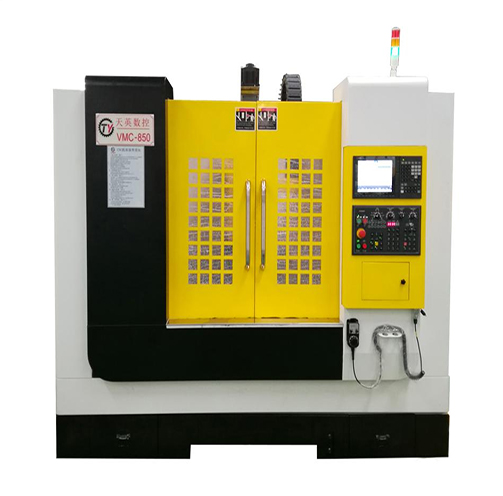

Heavy-Duty Vertical Machining Center,Series VMC-850

VMC-850 Box way vertical machining center is very suitable for heavy cutting and milling, 3 axis uses box ways for high rigidity, spindle speed up to 8000 rpm. Thus, it is suitable for the rough processing and mound manufacturing of a broad scope of products. This vertical machining center only requires a 20KVA power, saving machining cost for users.

Parameters
Model VMC-850
Stroke
X-axis travel (mm) 800
Y-axis travel (mm) 500
Z-axis travel (mm) 500
Distance from spindle nose to table center (mm) 110-810
Distance between spindle center to column (mm) 575
Worktable
Worktable area (mm) 1000×530
Maximum weight on table (kg) 600
T-SLOT (WIDTH – NUMBER OF SLOT X SPACING) (mm) 18-5×110
Spindle
Standard spindle speed (r.p.m) 8000
Spindle horsepower (KW) 10 (7.5)
Spindle taper BT40φ150 (belt drive)
Feed
X、Y-axis rapid feed (mm/min) 18000
Z-axis rapid feed (mm/min) 15000
Triaxial cutting feed (mm/min) 1-8000
Others
Three-axis motor power (KW) 3.0/3.0/3.0
Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Control system MISUBISHI: M80A/M80B, FANUC: Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 1/2
Power requirement (KVA) 20
Air pressure (bar) 6-7
Machine weight (kg) 6000
Machine dimension (mm) 2700×2400×2500
Components display of vertical machining centers (3 axis box guideways)
  • Turntable type tool magazine, holding 24 tools.
  • Mechanical spindle, direct drive
  • Control system and motor

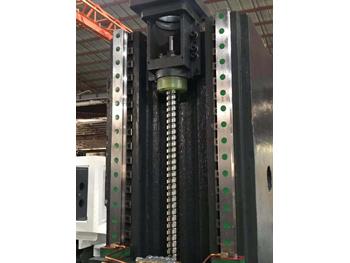

  • Box guideway
