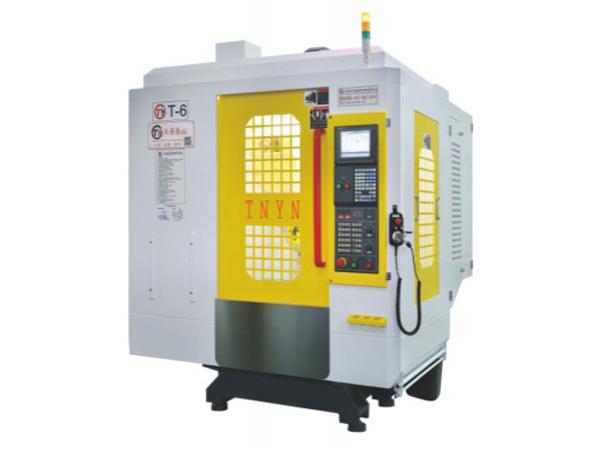

CNC Tapping Center, Series T-6 CNC Machining Center
T6 CNC tapping centers feature a small footprint, ultra-compact structure and high-speed ranging from 12,000 to 20,000 RPM. BT30 spindle achieves rigid tapping up to 6,000 RPM. The workbench of this machining center can load as much as 350kg processing items at one time. With a positioning accuracy of ±0.005/300mm, the machined product operations with high precision.
Technical specifications
Model
T-6
Stroke
X-axis travel (mm)
600
Y-axis travel (mm)
400
Z-axis travel (mm)
300
Distance from spindle nose to table center (mm)
120-500
Worktable
Worktable area (mm)
700×420
Maximum weight on table (kg)
350
T-slot (width – number of slot x spacing) (mm)
5-18×80
Feed
Three-axis rapid feed rate (m/min)
48/48/48(OP60/60/60)
Cutting feed (mm/min)
1-15000
Spindle
Standard spindle speed (r.p.m)
Belt type15000/20000
Spindle taper
BT30
Spindle power (KW)
5.5
Others
Three-axis motor power (KW)
1.5/1.5/3
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003
Tool storage (pcs)
16/21 tools
Machine weight (kg)
3300
Machine dimension (mm)
2200×1850×2450
Parts display of CNC machining center
Mechanical spindle with direct drive

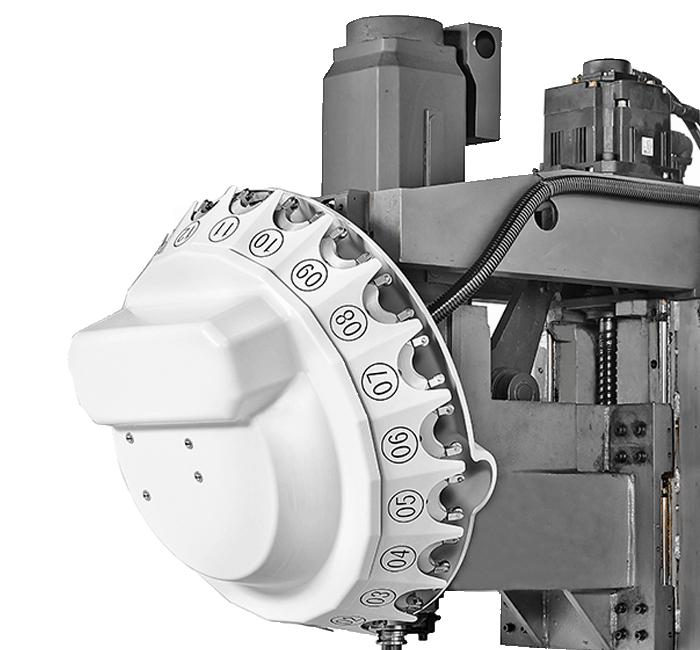

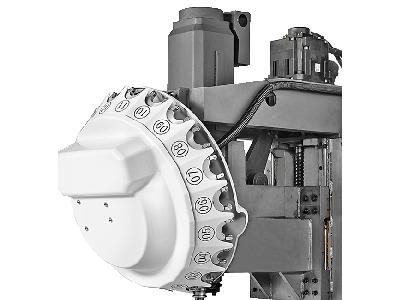

Disc type tool magazine, capable of assembling 16 tools
Control system and motor

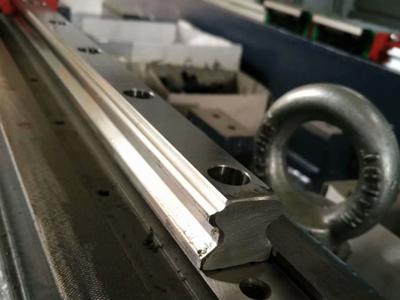

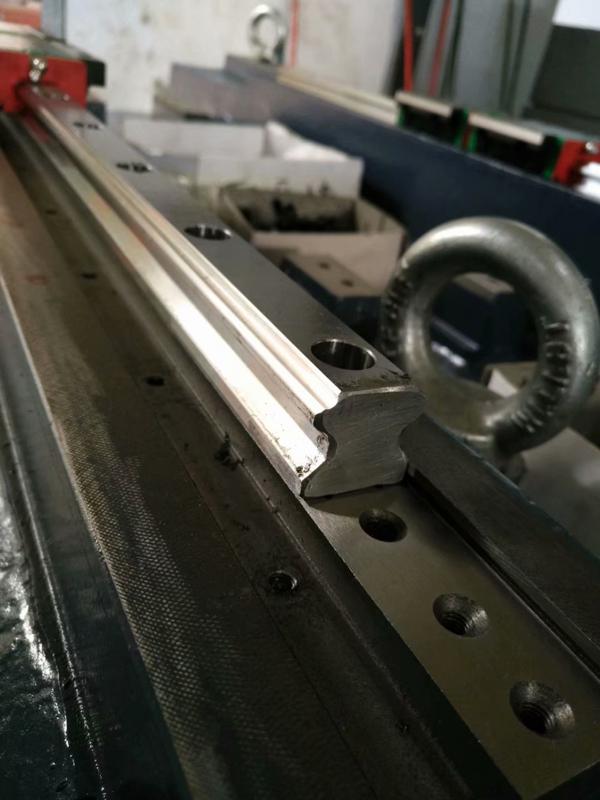

Linear guideway is running stably, of high machining precision.
