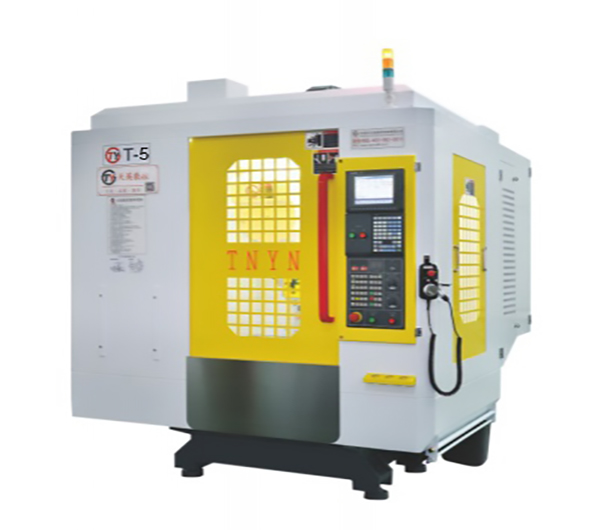

CNC Tapping Center, Series T-5 CNC Machining Center
T-5 CNC machining center can quickly realize the functions of tapping, drilling and milling. It has a workbench area of 600*400mm and the machine dimension is 1700*2100*2350mm. Its spindle speed is 12000r.p.m and its tool storage comes in 16 tool and 21 tool options
Technical specifications
Model
T-5
Stroke
X-axis travel (mm)
500
Y-axis travel (mm)
400
Z-axis travel (mm)
300
Distance from spindle nose to table center (mm)
120-420
Worktable
Worktable area (mm)
600x400
Maximum weight on table (kg)
300
T-slot (width – number of slot x spacing) (mm)
3-14x125
Feed
Feed speed (m/min)
48/48/48 (OP60/60/60)
Cutting feed (mm/min)
1-15000
Spindle
Spindle drive mode
Belt type
Spindle taper
BT30
Spindle power (KW)
5.5
Others
Three-axis motor power (KW)
1.5/1.5/3
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003
Tool storage (pcs)
16/21 tools
Machine weight (kg)
3000
Machine dimension (mm)
1700x2100x2350
Parts display of CNC machining center
Mechanical spindle with direct drive
Disc type tool magazine, capable of assembling 16 tools
Control system and motor
Linear guideway is running stably, of high machining precision.
