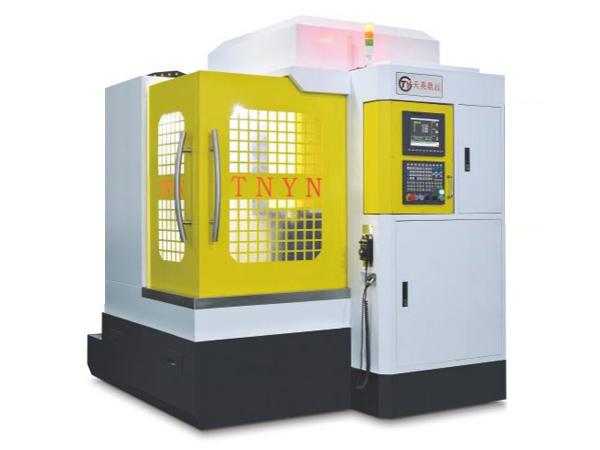

CNC Milling Machine, Series EMC-1280

This CNC milling machine has only one spindle and two optional spindle speeds of 18000rpm and 24000rpm for customers to choose from, and is used to carry out drilling and milling processes. The workbench is capable of loading up to 900kg at one time.

Parameters of CNC milling machine
Model EMC-650
Stroke X-axis travel (mm)
Y-axis travel (mm)
Z-axis travel (mm) 		500/600/230
Distance from spindle nose to table center (mm) 120-370
Worktable Worktable area (mm) 650x520
Maximum weight on table (kg) 500
T-slot (width – number of slot x spacing) （mm） 5-14
Spindle Standard spindle speed （r.p.m） 18000/24000/30000
Spindle taper ER25/ER32/BT30
Spindle motor power (KW) 4.5/5.5
Feed Triaxial rapid feed (mm/min) 18000
Triaxial cutting feed (mm/min) 1-6000
Others Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Machine weight (kg) 2800
Machine dimension (mm) 1850x2050x2400
Parts of CNC mill machine
  • Control system and motor
  • Direct drive motor spindle
  • Turntable type tool magazine, capable of holding 12 tools
  • Linear guideway runs in a stable manner with a high machining precision
