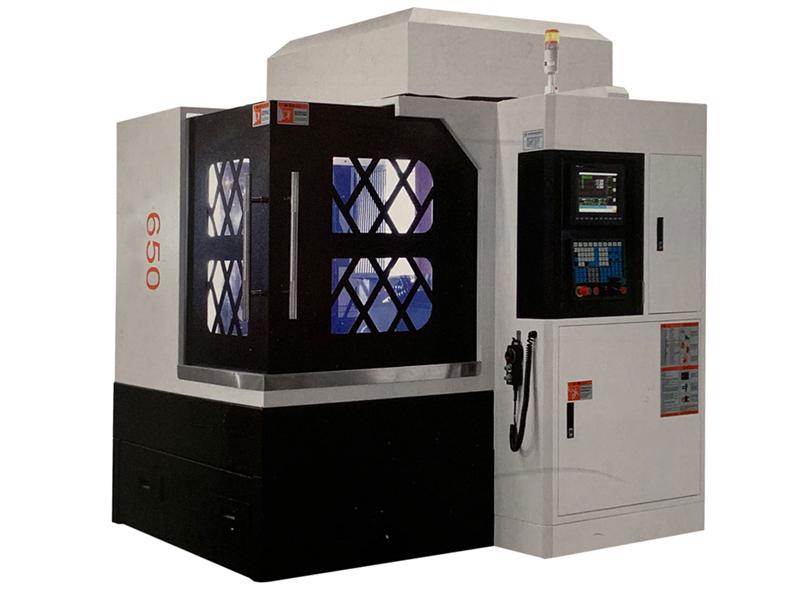

CNC Milling Machine, Series EMC-650

The CNC engraving and milling machine features linear X/Y/Z axis with standard rapid feed up to 12 m/min. The high rigidity machine body maintains the processing stability during high rotation speed., this workbench can hold up to 500kg of machining items at one time during usage.

Parameters of CNC Engraving and Milling Machine
Model EMC-650
Stroke X-axis travel (mm)
Y-axis travel (mm)
Z-axis travel (mm) 		500/600/230
Distance from spindle nose to table center (mm) 120-370
Worktable Worktable area (mm) 650x520
Maximum weight on table (kg) 500
T-slot qty./size (mm) 5-14
Spindle Spindle speed (rpm) 18000/24000/30000
Spindle taper ER25/ER32/BT30
Spindle motor power (KW) 4.5/5.5
Feed Triaxial rapid feed (mm/min) 18000
Triaxial cutting feed (mm/min) 1-6000
Others Positioning accuracy (mm) ±0.005/300
Repeatability (mm) ±0.003/300
Machine weight (kg) 2800
Machine dimension (mm) 1850x2050x2400
Parts of CNC mill machine
  • Control system and motor
  • Direct drive motor spindle
  • Turntable type tool magazine, capable of holding 12 tools

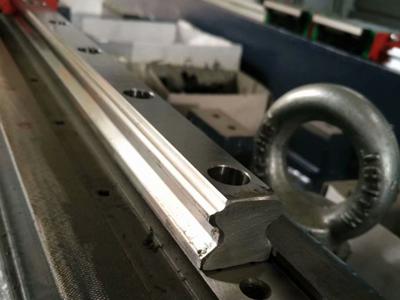

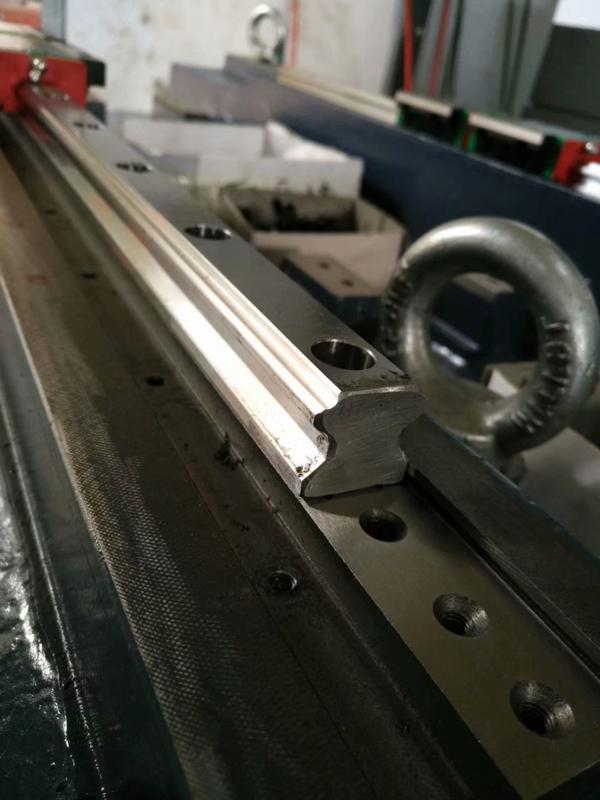

  • Linear guideway runs in a stable manner with a high machining precision
