The three axes move on linear guideways that minimize friction while providing high accuracy of positioning and repeatability. This series machining center is not only suitable for large-scale production line application. It is also ideal for smaller factories and machine shops. Therefore, if you are performing fine processing, this milling machine will be an ideal option. And it only requires a power of 20KVA for operating.
Parameters
Model
V-640
Stroke
X-axis travel (mm)
600
Y-axis travel (mm)
400
Z-axis travel (mm)
450
Distance from spindle nose to table center (mm)
170-620
Distance between spindle center to column (mm)
480
Worktable
Worktable area (mm)
700×420
Maximum weight on table (kg)
350
T-slot quantity
3
T-slot size (mm)
18
Spindle
Standard spindle speed （r.p.m）
10000
Spindle speed (non-standard) (rpm)
12000-15000
Spindle horsepower (KW)
7.5(5.5)
Spindle taper
BT-40
Feed
Triaxial rapid feed (mm/min)
48000
Triaxial cutting feed (mm/min)
1-10000
Others
Three-axis motor power (KW)
1.5/1.5/3
Positioning accuracy (mm)
±0.005/300
Repeatability (mm)
±0.003/300
Control system
MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP)
1/2
Power requirement (KVA)
20
Air pressure (bar)
6-7
Machine weight (kg)
3700
Machine dimension (mm)
1850×2400×2600
Components of CNC vertical machining center (3 axis linear guideway)
Control system and motor
Mechanical spindle, direct drive
Turntable tool storage, holding 24 tools.

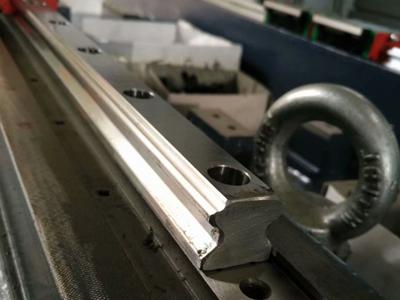

Linear guideway runs stably and has high machining precision
